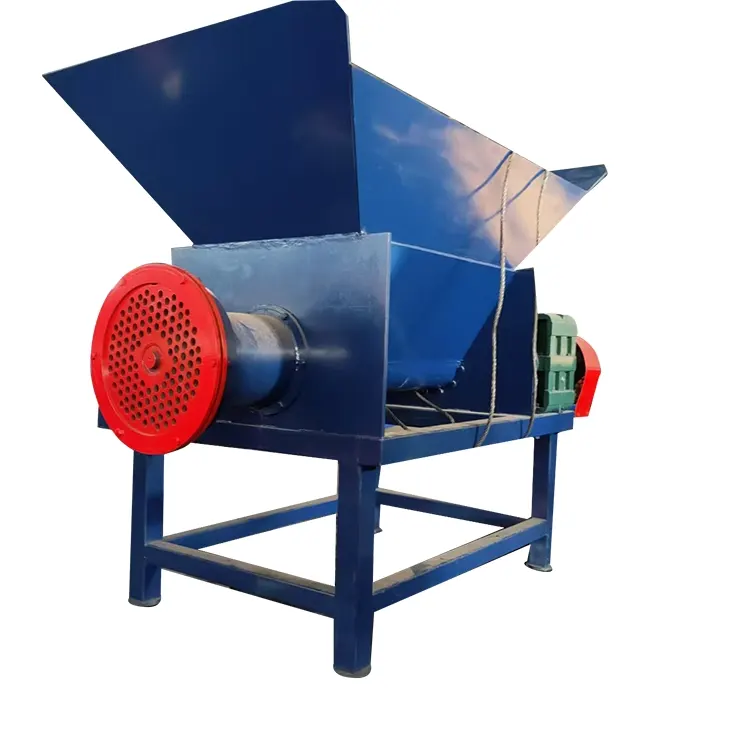

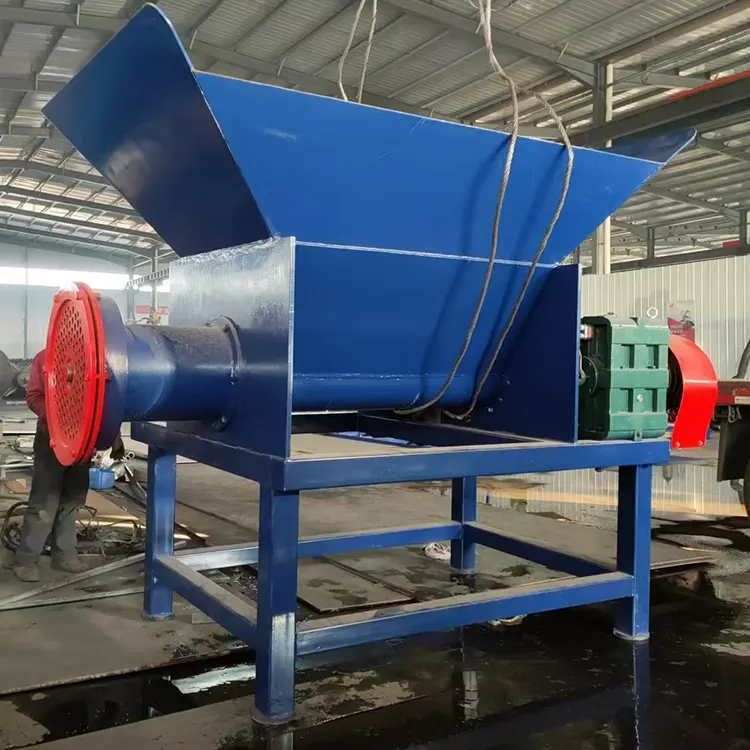

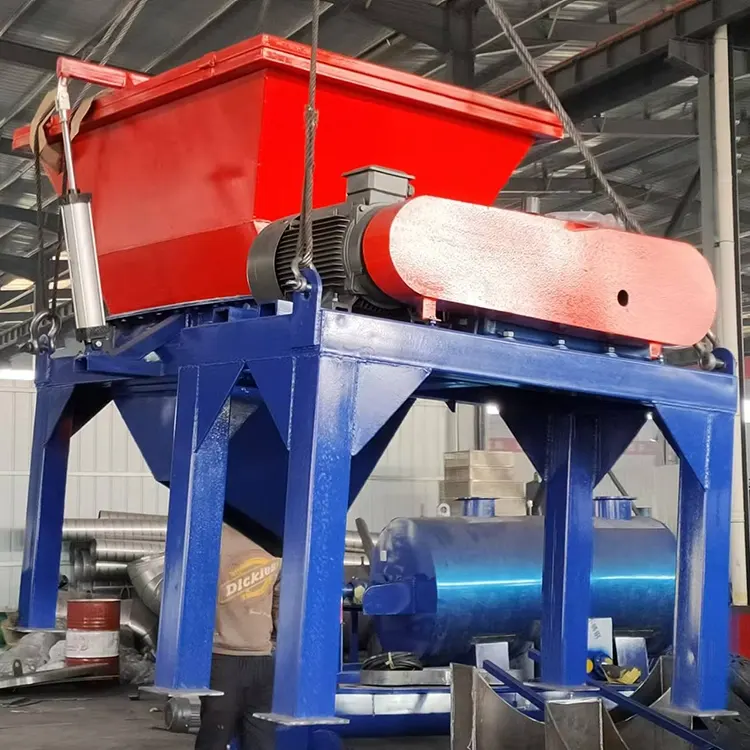

Animal Carcass Double Shaft Crusher

Use:

Traditional animal carcass crushers can only be regarded as "tearing" crushers. Animal skins and intestines cannot be crushed well, which easily causes conveyor blockage, uneven bone and meat crushing, affecting the efficiency of processing, and the processing time is long. The materials after processing cannot enter the oil press well, affecting the normal production process. Our company has developed a new generation of animal carcass double shaft crusher continuous improvement. The machine has the advantages of small and uniform crushed material particles, complete shredding of animal skins and intestinal tissues, no entanglement and no blockage in material transportation, reducing the processing time of materials, improving work efficiency, and no blockage of the processed materials entering the oil press, saving energy and electricity, etc.

The improved new crusher with working principle has changed the original moving knife shape, material and crushing method. The arc-shaped moving knife blade and the 30° star static knife form a circular scissor-type working mode, making it easier to chop the material. The moving knife is arranged in a spiral shape on the main shaft at 20°, reducing the torque so that the equipment will not get stuck. The moving knife and the static knife are precisely processed with Cr12 to make the blade sharper. The reasonable gap between the moving and static knives is more conducive to shearing the skin and intestine materials of the animals. The main shaft adopts a hexagonal structure, which has greater torque than the traditional flat key type, better stability and longer service life.

Features

1. Simple structure, easy assembly and easy cleaning

2. The utility model adopts a cutting-type tearing blade and spiral operation. The tearing of animal carcasses is efficient and thorough. The spiral operation is not easy to cause blockage, has low energy consumption, can effectively save labor costs, and has a low failure rate. Protective covers are provided on relevant parts to effectively prevent personal injury, safe and efficient.

3. The crushed material particles are small and uniform, animal skin and intestinal tissue can be completely shredded, material transportation is not entangled or blocked, the material processing time is reduced, the work efficiency is improved, and the processed materials enter the oil press without blockage, energy saving and power saving, etc.

Equipment features:

1. The large crushing ratio is suitable for the overall crushing of animal carcasses, and coarse crushing is not allowed in the middle.

2. No clogging of the screen. The equipment will not be clogged by animal blood and fur during use.

3. The equipment operates stably and has strong crushing force. It will not be stuck or damaged by animal bones.

4. Heavy moving knife, high crushing efficiency. Both the moving knife and the fixed knife are cast with alloy steel, which is strong and has a long service life.

5. The equipment is easy to clean. Just rinse with clean water after handling the dead animals.

Because the organization of animal carcasses is relatively complex, the bones are hard and brittle, and the fur, muscles, tendons and other tissues are very good, the usual extrusion and impact will generally cause the problem of shaft winding. In this regard, the double-axis animal shredder produced by Binzhou Longteng Machinery can effectively solve the above equipment problems and increase the crushing of the equipment.

In principle, the double-axis animal carcass shredder uses two shafts with low speed and high torque for relative motion. The angular blades fixed on the shafts will tear, shear and crush the dead animal carcasses entering the equipment during the rotation of the main shaft. The crushed animal carcasses are directly discharged from the equipment body without any filtering device to complete the crushing operation. For the problem of crushing size, customers can make a reasonable choice by replacing the equipment blades.

Scope of application:

Animal carcass double-axis shredder has the advantages of high efficiency, energy saving and environmental protection, intelligent and reliable. This equipment can crush the complete animal carcass to the ideal particle size at one time. It is mainly suitable for crushing operations above 25mm. It is widely used in the crushing of whole pigs, cattle and sheep in harmless treatment plants and large farms.
