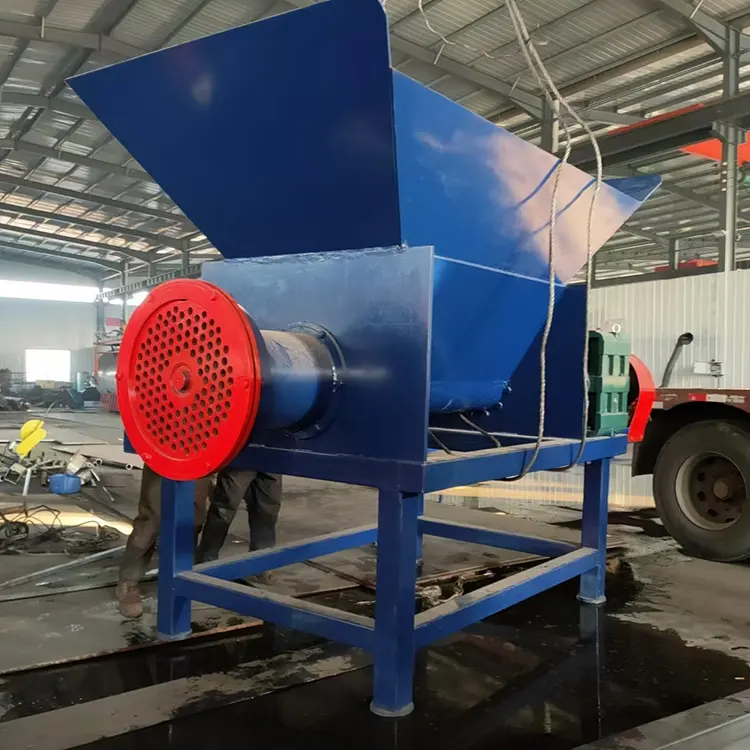

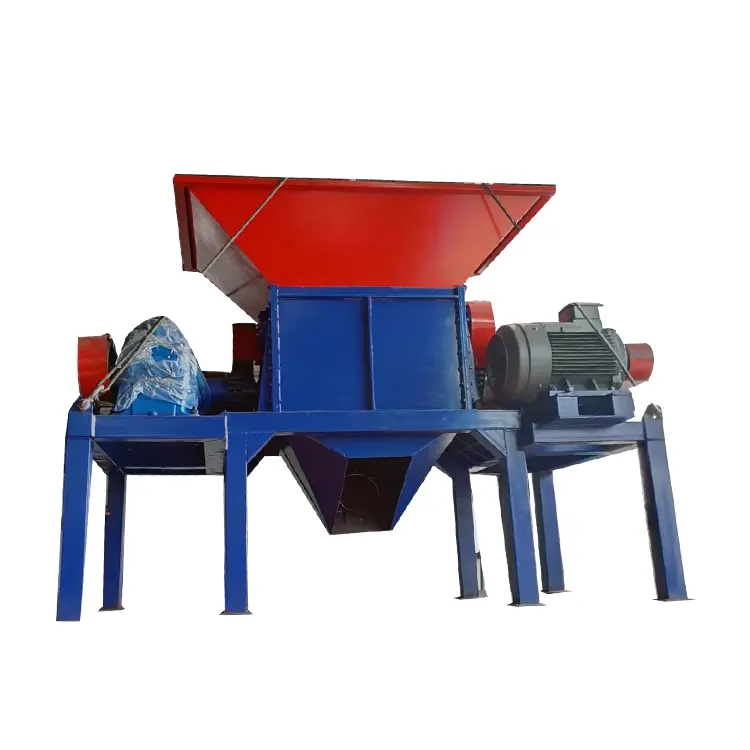

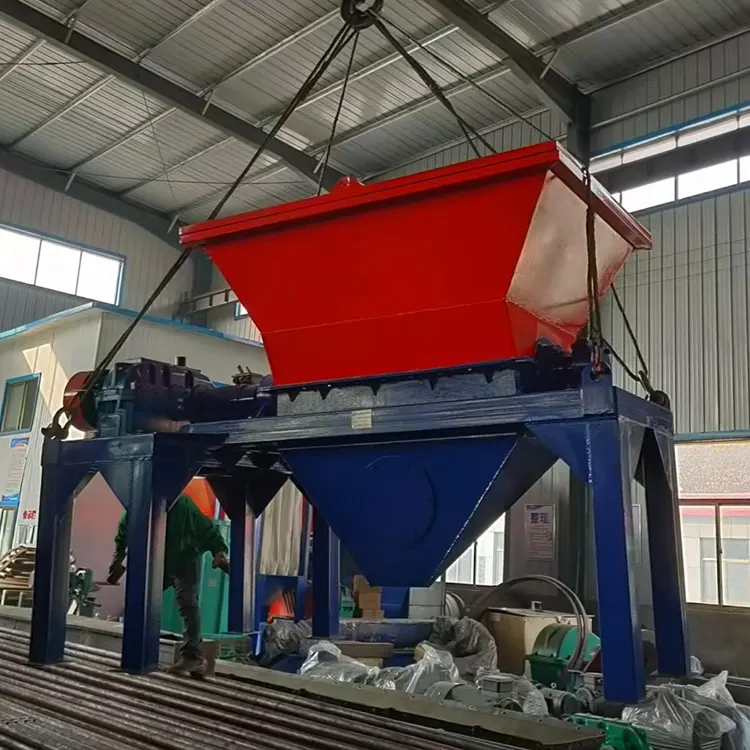

Livestock Carcass Crusher

Uses

Traditional livestock carcass crusher can only be regarded as "tearing" crushers. Animal skins and intestines cannot be crushed well, which easily causes conveyor blockage, uneven bone and meat crushing, affecting the efficiency of processing, long processing time, and the materials after processing cannot enter the oil press well, affecting the normal production process. Our company has developed a new generation of livestock carcass crusher through continuous improvement. The machine has the advantages of small and uniform crushed material particles, complete shredding of animal skins and intestinal tissues, no entanglement and no blockage in material transportation, reduced processing time of materials, improved work efficiency, no blockage of processed materials entering the oil press, energy saving and electricity saving, etc.

Working principle

The improved livestock carcass crusher has changed the original shape, material and crushing method of the moving knife. The arc-shaped moving knife blade and the 30° star-shaped static knife form a circular scissor-type working mode, making it easier to chop the material. The moving knives are arranged in a spiral shape on the main shaft at 20°, reducing the torque so that the equipment will not get stuck. The moving knife and the static knife are precisely processed with Cr12 to make the blade sharper. The reasonable gap between the moving and static knives is more conducive to shearing the skin and intestine materials of the feeding object. The main shaft adopts a hexagonal structure, which has greater torque than the traditional flat key type, better stability and longer service life.

Features

1.Simple structure, easy assembly and easy cleaning 2. The utility model adopts a cutting-type tearing blade and spiral operation. The tearing of animal carcasses is efficient and thorough, the spiral operation is not easy to cause blockage, the energy consumption is low, it can effectively save labor costs, and the failure rate is low. The relevant parts are equipped with protective covers to effectively prevent personal injury, safe and efficient. 3. The crushed material particles are small and uniform, the animal skin and intestinal tissue can be completely chopped, the material conveying is not entangled and blocked, the material processing time is reduced, the work efficiency is improved, the processed materials enter the oil press without blockage, energy saving and power saving and other advantages.

Features of crusher:

1. The large crushing ratio is suitable for the overall crushing of animal carcasses, and coarse crushing is not allowed in the middle.

2. No clogging of the screen. The equipment will not be clogged by animal blood and fur during use.

3. The equipment operates stably and has strong crushing force. It will not be stuck or damaged by animal bones.

4. Heavy moving blade, high crushing efficiency. Both the moving blade and the fixed blade are cast with alloy steel, which is strong and has a long service life.

5. The equipment is easy to clean. Just rinse it with clean water after handling the dead animals.
