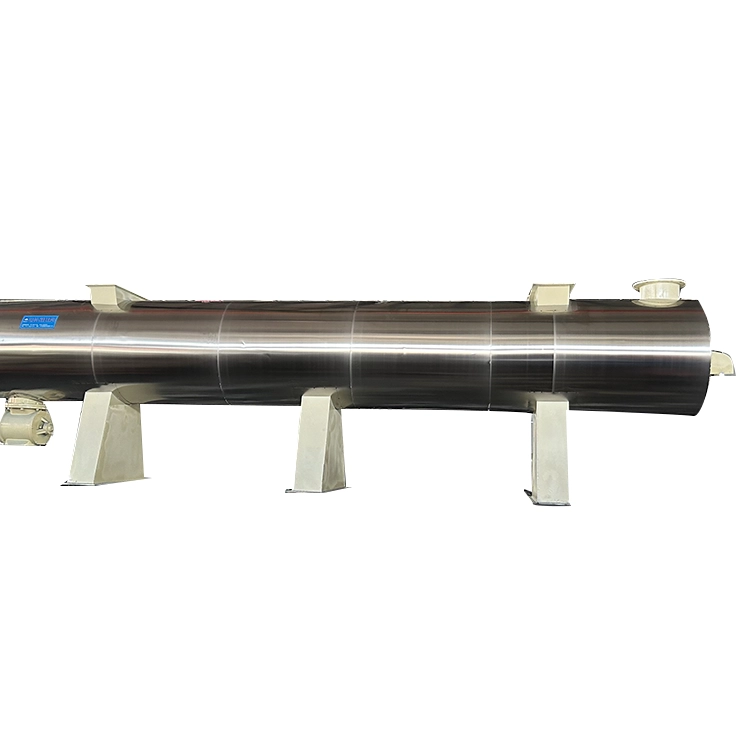

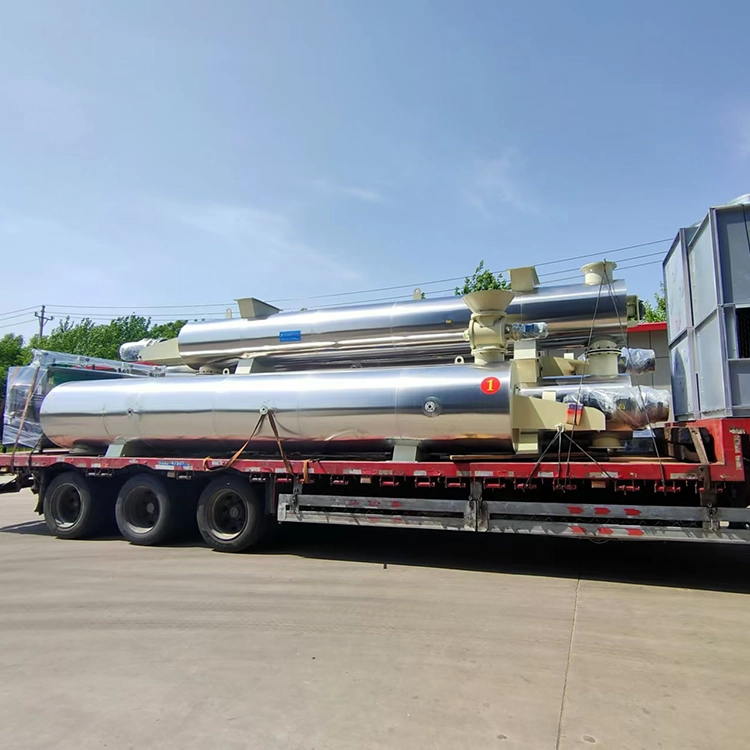

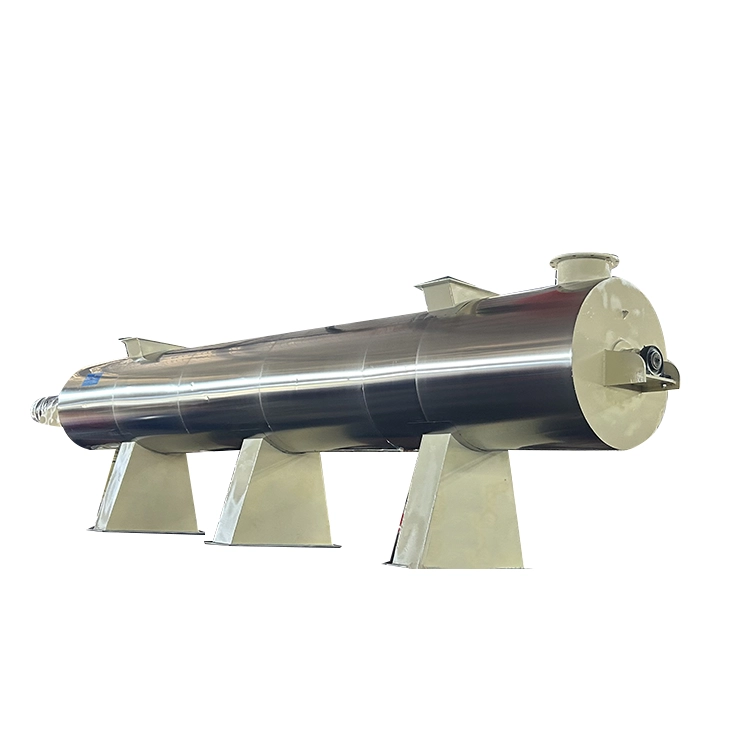

Customs Frozen Food Harmless Treatment Equipment

Sterilization method: traditional high temperature sterilization is usually through direct heating, while the harmless treatment equipment of the customs frozen products is sterilized by high pressure and high temperature steam. This method can better penetrate into the interior of the grain and kill more microorganisms.

Sterilization effect: Traditional high-temperature sterilization may destroy the nutritional components of grains, while customs frozen food harmless treatment equipment can maximize the retention of nutritional components of grains by precisely controlling temperature and time.

Scope of application: Traditional high-temperature sterilization is only applicable to some foods, while customs frozen food harmless treatment equipment can be widely used in various types of grains.

Process:

1. Turn on the main power supply, turn on the steam generator, and heat the temperature in the steam generator to the range that meets the use. The temperature of the steam generator is 110℃-120℃.

2. Open the steam inlet valve. Turn on the stirring motor. Turn on the air lock motor.

3. The material begins to enter the grain modulator. Under the action of stirring, the material slowly passes through the 2-layer modulator, and the steam continuously acts on the surface of the grain, raising the grain temperature to 85℃-95℃, ensuring the sterilization time of about 5 minutes.

4. After the feeding starts, turn on the chain conveyor motor, turn on the second air lock motor, and turn on the fan motor.

5. After the processed grain enters the countercurrent air cooler through the conveyor, the material limit switch automatically senses the grain height in the air cooler, and automatically turns on the discharge motor to automatically discharge the material.

6. After the operation is completed, stop the material from entering the grain modulator first. After the material is completely discharged, turn off the steam generator in order, air lock one, grain modulator, chain conveyor, countercurrent air cooler, air lock two, and fan.

7. Check the surrounding environment and remove foreign matter. Turn off the main power.
