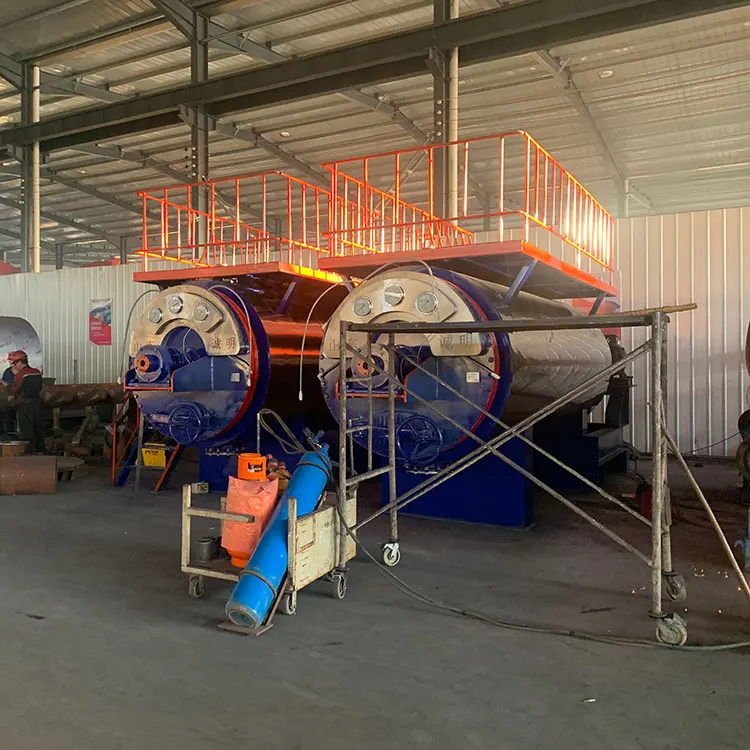

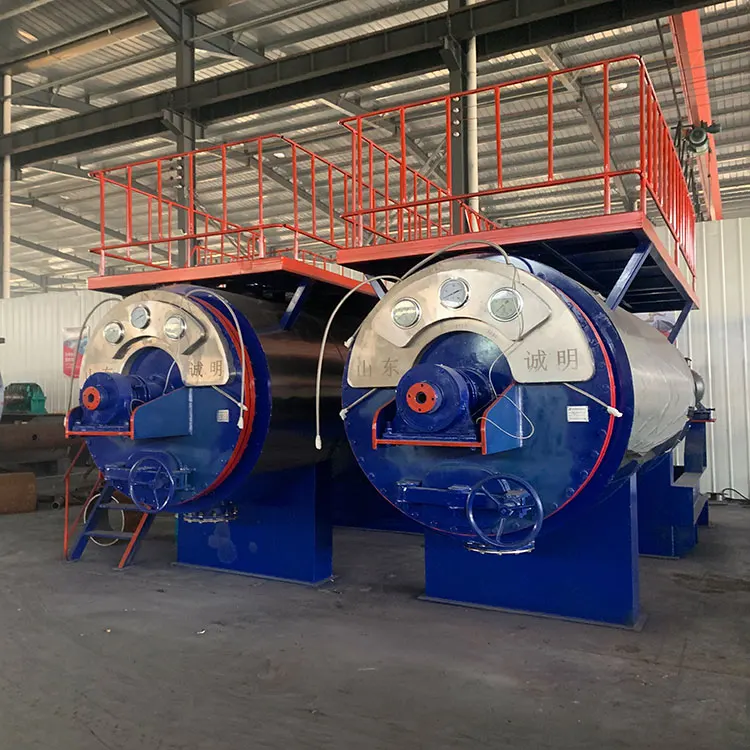

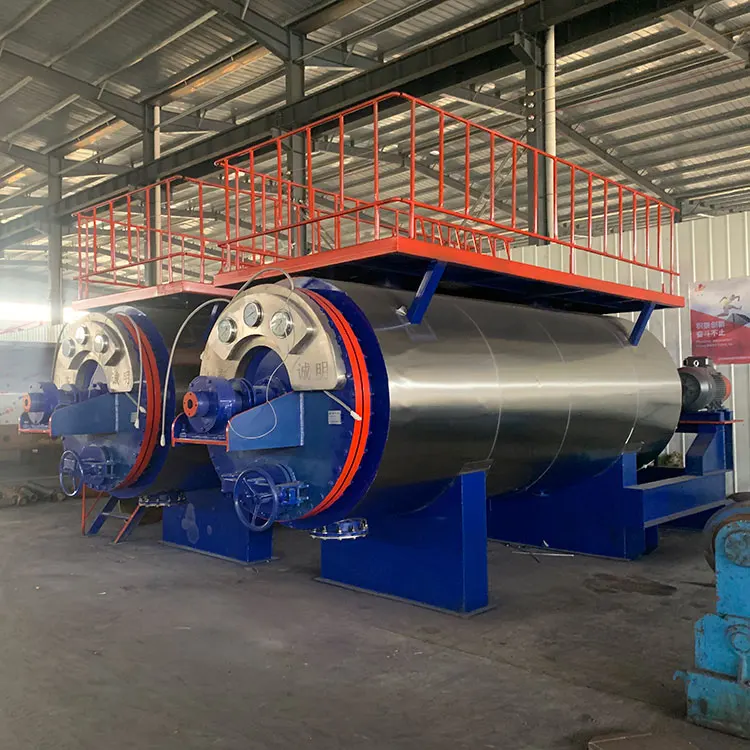

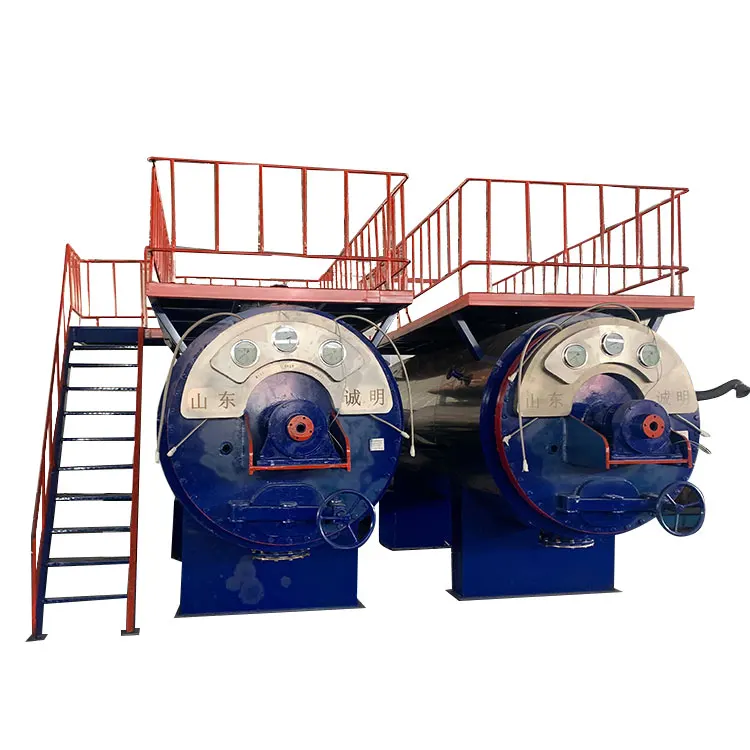

Feather Powder Hydrolysis Tank

Feather powder hydrolysis tank is a key equipment for harmless treatment of slaughter waste. Its purpose is to treat the feathers of dead animals through high temperature and high pressure to achieve the purpose of maturation and sterilization.

Performance characteristics:

1. The outer shell adopts a double-layer jacket filled with steam to increase the heat exchange area; the intermediate shaft adopts a seamless steel pipe, and the stirring teeth are made of Q345R material to enhance wear resistance;

2. The inlet and outlet adopt a collision block structure, which is convenient for operation, and a separate exhaust port is used to effectively prevent material spraying;

3. The integral steel structure bracket can change the installation position at will;

4. The weight of the material in the tank can be measured by measuring the instantaneous current of the motor;

5. The inner layer is equipped with a thermocouple device to measure the temperature of the matured material; a pressure gauge is configured in the jacket layer to measure the steam pressure, and the overpressure is automatically discharged;

6. The automatic drainage system is used to return the steam condensate to the boiler to reduce energy consumption and save water;

7. The hydraulic coupling is used. When the equipment is powered off or stuck, the motor can slowly drive the main shaft of the equipment to operate, reducing the instantaneous impact force and extending the service life of the equipment; The transmission adopts a gear ring structure to save energy consumption;

8. The outer insulation layer is covered with stainless steel to enhance corrosion resistance and beautiful appearance.

Parameters:

Model	CMJ-5
Tank size (mm)	φ1600/1800×4500
Effective volume (m³)	9.6
Design pressure (Mpa)	0.45/0.65
Working pressure (Mpa)	0.4/0.6
Design temperature (℃)	160/190
Working temperature (℃)	150/180
Processing capacity (T)	8.0
Power (kW)	45
